security Cert Management

Public and Private Keys

EPICS Agents maintain public/private key pairs for identification:

  • Public key identifies agent to peers (shorthand representation: 8-character SKID)

  • Private key must be protected like a password

  • The Key pair are stored in the keychain file.

  • If the referenced keychain file does not contain a key pair then any of the authnxxx tools will automatically generate a new key pair and store it in the keychain file.

  • Once a key pair has been established, it will be reused for each certificate request.

Identity Assertion Process:

  1. Each peer presents a certificate

  2. Each peer signs some data with his private key

  3. Peer verifies signature using the public key in the certificate

  4. Peer validates certificate by checking the signature and the certificate chain of trust.

  5. The chain of trust is validated back to the Peer’s own Trust Anchor (Root Certificate Authority).

  6. The peer’s identity is confirmed through successful verification

Key Security:

  • Keeping a private key secure is critical

  • Store it in a keychain file that is not accessible by other users or programs

  • Use separate keychain files for each certificate

Trust Establishment

Secure PVAccess relies on each EPICS agent having a copy of the Root Certificate Authority certificate in a referenced keychain file so that it can verify certificates presented to it by other agents.

If a peer presents a certificate that is not signed by a certificate authority that is trusted by the agent, the agent will reject the certificate.

Even if the EPICS client does not want its own certificate it must still have a copy of the Root Certificate Authority. This copy is referred to in this document as the Trust Anchor.

  1. Trust Anchor Distribution:

    • Administrators must distribute PKCS#12 files containing the Root certificate to all clients

    • These files must be stored at the location pointed to by EPICS_PVA_TLS_KEYCHAIN or equivalent

Certificates

A certificate is the document that is exchanged with a peer that identifies an agent. It contains the name of the agent (subject) and the public key of the agent so that the peer can verify the agent’s identity.

  • A certificate is not private. It can safely be shared with any peer.

    • Care must be taken when sharing a certificate as it is stored in the same file as the private key. Do not share the keychain file with others.

  • A certificate is valid for a specific period of time.

  • A certificate can be revoked by an administrator (if the status monitoring extension is addded to the certificate - by default it is)

Certificate Attributes

The following attributes are used to describe a certificate:

  • subject: The entity to which the certificate was issued

    • name: The common name of the entity to which the certificate was issued. Username, application name, or other identifier.

    • organization: The organization of the entity to which the certificate was issued. Hostname, institution, domain, realm, etc.

    • organizational unit: The organizational unit of the entity to which the certificate was issued. Optional.

    • country: The country of the entity to which the certificate was issued. Two letter country code. Default US.

  • issuer: The certificate authority that issued the certificate

  • serial number: A unique serial number for the certificate

  • validity period: The period of time for which the certificate is valid

    • notBefore: The date and time before which the certificate is not valid.

    • notAfter: The date and time after which the certificate is not valid.

  • public key: The public key of the entity to which the certificate was issued

  • private key: The private key of the entity to which the certificate was issued. This is not stored in the certificate but it is stored in the keychain file.

  • SPVA certificate status extension: A string representing the PV name where the certificate status can be monitored.

  • SPVA config uri extension: A string representing the PV name where the certificate configuration can be monitored.

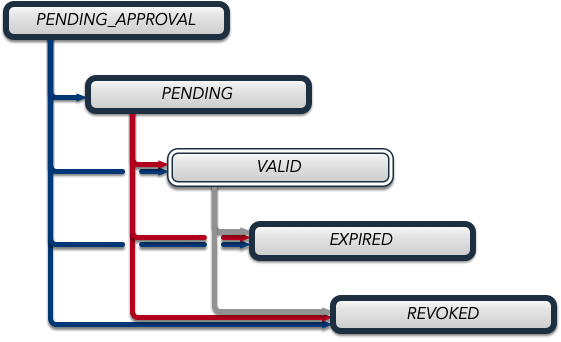

Certificate States

Certificate States

  • PENDING_APPROVAL: Certificate awaiting administrative approval

  • PENDING: Certificate not yet valid (before notBefore date)

  • VALID: Certificate currently valid and usable

  • EXPIRED: Certificate expired (after notAfter date)

  • REVOKED: Certificate permanently revoked by administrator

Certificate Status Message

Status response structure:

Structure
    enum_t     status               # PENDING_APPROVAL, PENDING, VALID, EXPIRED, REVOKED
    UInt64     serial               # Certificate serial number
    string     state                # String representation of status
    enum_t     ocsp_status          # GOOD, REVOKED, UNKNOWN
    string     ocsp_state           # OCSP state string
    string     ocsp_status_date     # Status timestamp
    string     ocsp_certified_until # Validity period end
    string     ocsp_revocation_date # Revocation date if applicable
    UInt8A     ocsp_response        # Signed PKCS#7 encoded OCSP response

Certificate Creation Request (CCR)

This message is sent to PVACMS to create a new certificate. It is a PVStructure with the following fields:

Request structure:

Structure
    string     type               # std, krb, ldap, jwt
    string     name               # Certificate subject name
    string     country            # Optional: Country code
    string     organization       # Optional: Organization name
    string     organization_unit  # Optional: Unit name
    UInt16     usage              # Certificate usage flags:
                                    #   0x01: Client
                                    #   0x02: Server
                                    #   0x03: Client and Server
                                    #   0x04: Intermediate Certificate Authority
                                    #   0x08: CMS
                                    #   0x0A: Any Server
                                    #   0x10: Certificate Authority
    UInt32     not_before         # Validity start time (epoch seconds)
    UInt32     not_after          # Validity end time (epoch seconds)
    string     pub_key            # Public key data
    enum_t     status_monitoring_extension  # Include status monitoring
    structure  verifier           # Optional: Authenticator specific data
The verifier sub-structure is only present if the type field references a

TYPE 1 - Independently Verifiable Tokens, or TYPE 2 - Source Verifiable Tokens Authenticator.

Certificate Management Operations

pvacert can be used to APPROVE, DENY, and REVOKE certificates as follows.

Approval:

pvxcert -A <certid>    # Approve certificate

Denial:

pvxcert -D <certid>    # Deny certificate (sets REVOKED)

Revocation:

pvxcert -R <certid>    # Permanently revoke certificate

It achieves this by using PUT to send a PVStructure with the following fields, to PVACMS on the PV associated with the certificate:

Structure
    string     state    # APPROVE, DENY, REVOKE

Certificate Management Tools

pvxcert

Certificate management utility for PVXS

Gets the STATUS of a certificate, REVOKES a certificate, or APPROVES or DENIES a pending certificate approval.

  Get certificate status from serial number: The certificate ID is specified as <issuer>:<serial>,
  where <issuer> is the first 8 hex digits of the subject key identifier of the issuer and <serial>
  is the serial number of the certificate. e.g. 27975e6b:7246297371190731775.

  Get certificate status from keychain file: The keychain file must be a PKCS#12 file.

  APPROVAL and DENIAL of pending certificate approval requests: Can only be made by administrators.

  REVOCATION of a certificate: Can only be made by an administrator.

usage:
  pvxcert [options] <cert_id> Get certificate status
  pvxcert [file_options] [options] (-f | --file) <cert_file>
                                             Get certificate information from the specified cert file
  pvxcert [options] (-A | --approve) <cert_id>
                                             APPROVE pending certificate approval request (ADMIN ONLY)
  pvxcert [options] (-D | --deny) <cert_id>  DENY pending certificate approval request (ADMIN ONLY)
  pvxcert [options] (-R | --revoke) <cert_id>
                                             REVOKE certificate (ADMIN ONLY)
  pvxcert (-h | --help)                      Show this help message and exit
  pvxcert (-V | --version)                   Print version and exit

file_options:
  (-p | --password)                          Prompt for password

options:
  (-w | --timeout) <timout_secs>             Operation timeout in seconds.  Default 5.0s
  (-d | --debug)                             Debug mode: Shorthand for $PVXS_LOG="pvxs.*=DEBUG"
  (-v | --verbose)                           Verbose mode

Key Operations:

  • Check certificate status

  • Approve/deny PENDING_APPROVAL certificates (admin)

  • Revoke certificates in any state (admin/self)

Certificate Usage

Network clients can request new certificates from PVACMS using their public key. The process:

  1. Generate key pair

  2. Submit certificate request

  3. Receive signed certificate

  4. Install in configured location

PVACMS

The PVACMS is the Certificate Authority Service for the EPICS Secure PVAccess Network.

PVACMS Usage

PVACMS: PVAccess Certificate Management Service

Manages Certificates for a Secure PVAccess network.  The Certificate Authority.  Handles Create
and Revoke requests.  Manages Certificate lifecycles and provides live OCSP certificate status.

Also can be used to re-generate the admin certificate that is required to administer the certificates.

usage:
  pvacms [admin options] [options]           Run PVACMS.  Interrupt to quit
  pvacms (-h | --help)                       Show this help message and exit
  pvacms (-V | --version)                    Print version and exit
  pvacms [admin options] --admin-keychain-new <new_name>
                                             Generate a new Admin User's keychain file, update the ACF file, and exit

options:
  (-c | --cert-auth-keychain) <cert_auth_keychain>
                                              Specify Certificate Authority keychain file location. Default ${XDG_CONFIG_HOME}/pva/1.3/cert_auth.p12
        --cert-auth-keychain-pwd <file>       Specify location of file containing Certificate Authority keychain file's password
        --cert-auth-name <name>              Specify name (CN) to be used for certificate authority certificate. Default ``EPICS Root Certificate Authority``
        --cert-auth-org <name>               Specify organisation (O) to be used for certificate authority certificate. Default ``certs.epics.org``
        --cert-auth-org-unit <name>          Specify organisational unit (OU) to be used for certificate authority certificate. Default ``EPICS Certificate Authority``
        --cert-auth-country <name>           Specify country (C) to be used for certificate authority certificate. Default `US`
  (-d | --cert-db) <db_name>                 Specify cert db file location. Default ${XDG_DATA_HOME}/pva/1.3/certs.db
  (-p | --pvacms-keychain) <pvacms_keychain> Specify PVACMS keychain file location. Default ${XDG_CONFIG_HOME}/pva/1.3/pvacms.p12
        --pvacms-keychain-pwd <file>         Specify location of file containing PVACMS keychain file's password
        --pvacms-name <name>                  Specify name (CN) to be used for PVACMS certificate. Default `PVACMS Service`
        --pvacms-org <name>                   Specify organisation (O) to be used for PVACMS certificate. Default ``certs.epics.org``
        --pvacms-org-unit <name>              Specify organisational unit (OU) to be used for PVACMS certificate. Default ``EPICS PVA Certificate Management Service``
        --pvacms-country <name>               Specify country (C) to be used for PVACMS certificate. Default US
        --client-dont-require-approval        Generate Client Certificates in VALID state
        --ioc-dont-require-approval           Generate IOC Certificates in VALID state
        --server-dont-require-approval        Generate Server Certificates in VALID state
        --certs-dont-require-approval         Generate All Certificates in VALID state
        --cert_validity-client <duration>     Default duration for client certificates
        --cert_validity-server <duration>     Default duration for server certificates
        --cert_validity-ioc <duration>        Default duration for IOC certificates
        --cert_validity <duration>            Default duration for all certificates
        --disallow-custom-durations-client    Disallow custom durations for client certificates
        --disallow-custom-durations-server    Disallow custom durations for server certificates
        --disallow-custom-durations-ioc       Disallow custom durations for IOC certificates
        --disallow-custom-durations           Disallow custom durations
        --status-monitoring-enabled <YES|NO>  Require Peers to monitor Status of Certificates Generated by this
                                              server by default. Can be overridden in each CCR
        --status-validity-mins                Set Status Validity Time in Minutes
  (-v | --verbose)                            Verbose mode

admin options:
        --acf <acf_file>                      Specify Admin Security Configuration File. Default ${XDG_CONFIG_HOME}/pva/1.3/pvacms.acf
  (-a | --admin-keychain) <admin_keychain>    Specify Admin User's keychain file location. Default ${XDG_CONFIG_HOME}/pva/1.3/admin.p12
        --admin-keychain-pwd <file>          Specify location of file containing Admin User's keychain file password

PVACMS Configuration

The environment variables in the following table configure the PVACMS at runtime.

Note

There is also an implied hierarchy to their applicability such that PVACMS supersedes the PVAS version which in turn, supersedes the PVA version. So, if a PVACMS wants to specify its keychain file location it can simply provide the EPICS_PVA_TLS_KEYCHAIN environment variable as long as neither EPICS_PVACMS_TLS_KEYCHAIN nor EPICS_PVAS_TLS_KEYCHAIN are configured.

Name

Keys and Values

Description
EPICS_ADMIN_TLS
_KEYCHAIN
<path to ADMIN user keychain file>
e.g. ~/.config/pva/1.3/admin.p12
The location of the PVACMS ADMIN user keychain file.
EPICS_ADMIN_TLS
_KEYCHAIN_PWD_FILE
<path to ADMIN user password text file>
e.g. ~/.config/pva/1.3/admin.pass
Location of a password file for PVACMS ADMIN user keychain file.
EPICS_CERT_AUTH_NAME
<name of the certificate authority>
e.g. Epics Root Certificate Authority
To provide the name (CN) to be used in the subject of the
certificate authority’s Certificate if PVACMS creates it.
default: “EPICS Root Certificate Authority”
EPICS_CERT_AUTH
_ORGANIZATION
<certificate authority organisation name>
e.g. certs.epics.org
To provide the name (O) to be used in the subject of the certificate
authority’s certificate if PVACMS creates it.
default: “cert.authority.epics.org”
EPICS_CERT_AUTH
_ORGANIZATIONAL_UNIT
<certificate authority org unit name>
e.g. EPICS Certificate Authority
To provide the name (OU) to be used in the subject of the Certificate
Authority’s certificate if PVACMS creates it.
default: “EPICS Certificate Authority”
EPICS_CERT_AUTH
_TLS_KEYCHAIN
<certificate authority keychain file>
e.g.
~/.config/pva/1.3/cert_auth.p12
fully qualified path to a file that will be used as the
certificate authority keychain file.
EPICS_CERT_AUTH_
TLS_KEYCHAIN_PWD_FILE
<certificate authority password file>
e.g. ~/.config/pva/1.3/cert_auth.pass
fully qualified path to a file that will be used as the
certificate authority keychain password file.
EPICS_PVACMS_ACF
<path to ACF file>
e.g. ~/.config/pva/1.3/pvacms.acf
fully qualified path to a file that will be used as the
ACF file that configures the permissions of PVACMS peers.
EPICS_PVACMS_CERT
_STATUS_VALIDITY_MINS
<number of minutes>
e.g. 30 or 1d
Minutes that the ocsp status response will
be valid before a client must re-request an update
EPICS_PVACMS_CERTS
_REQUIRE_SUBSCRIPTION
{true (default) or false}
true if we require peers to
subscribe to certificate status for certificates to
be deemed VALID. Adds extension to new certificates
EPICS_PVACMS_DB
<path to DB file>
e.g. ~/.local/share/pva/1.3/certs.db
fully qualified path to a file that will be used as the
Certificate database file.
EPICS_PVACMS_REQUIRE
_APPROVAL
{true (default) or false }
true if server should generate all new certificates in the
PENDING_APPROVAL state false to generate in the VALID state
EPICS_PVACMS_REQUIRE
_CLIENT_APPROVAL
{true (default) or false }
true if server should generate new client certificates in the
PENDING_APPROVAL state false to generate in the VALID state
EPICS_PVACMS_REQUIRE
_IOC_APPROVAL
{true (default) or false }
true if server should generate new IOC certificates in the
PENDING_APPROVAL state false to generate in the VALID state
EPICS_PVACMS_REQUIRE
_SERVER_APPROVAL
{true (default) or false }
true if server should generate new server certificates in the
PENDING_APPROVAL state false to generate in the VALID state
EPICS_PVACMS_DISALLOW
_CUSTOM_DURATION
{true (default) or false }
true if client provided certificate durations should be ignored
EPICS_PVACMS_DISALLOW
_CLIENT_CUSTOM_DURATION
{true (default) or false }
true if client provided certificate durations should be ignored
for Client certificate requests
EPICS_PVACMS_DISALLOW
_IOC_CUSTOM_DURATION
{true (default) or false }
true if client provided certificate durations should be ignored
for IOC certificate requests
EPICS_PVACMS_DISALLOW
_SERVER_CUSTOM_DURATION
{true (default) or false }
true if client provided certificate durations should be ignored
for Server certificate requests
EPICS_PVACMS_CERT
_VALIDITY
<duration of the certificate>
e.g. 30 or 1d or 1y6M
The duration of the certificate. All certificates will be
generated with this amount of time unless overridden
EPICS_PVACMS_CERT
_VALIDITY_CLIENT
<duration of the certificate>
e.g. 30 or 1d or 1y6M
The duration of the certificate. All Client certificates will be
generated with this amount of time unless overridden
EPICS_PVACMS_CERT
_VALIDITY_IOC
<duration of the certificate>
e.g. 30 or 1d or 1y6M
The duration of the certificate. All IOC certificates will be
generated with this amount of time unless overridden
EPICS_PVACMS_CERT
VALIDITY_SERVER
<duration of the certificate>
e.g. 30 or 1d or 1y6M
The duration of the certificate. All Server certificates will be
generated with this amount of time unless overridden
EPICS_PVACMS_TLS
_KEYCHAIN
<path to keychain file>
e.g. ~/.config/pva/1.3/pvacms.p12
The location of the PVACMS keychain file.
EPICS_PVACMS_TLS
_KEYCHAIN_PWD_FILE
<path to password text file>
e.g. ~/.config/pva/1.3/pvacms.pass
Location of a password file for PVACMS keychain file.
EPICS_PVACMS_TLS
_STOP_IF_NO_CERT
{true or false (default) }
true if server should stop if no cert is available or can be
verified if status check is enabled

Extensions to Config for PVACMS

  • cert_status_validity_mins

    • The number of minutes that the certificate status is valid for.

    • Default: 30

  • cert_client_require_approval

    • If true then authstd (Standard Authenticator) generated client certificates must be approved before they can be used.

    • Default: true

  • cert_server_require_approval

    • If true then authstd (Standard Authenticator) generated server certificates must be approved before they can be used.

    • Default: true

  • cert_status_subscription

    • If Yes then the PVACMS will embed the certificate status monitoring extension in all certificates it issues by default.

    • If Always then force Yes irrespective of the Certificate Creation Request (CCR) status_monitoring_extension field.

    • If No then do not embed the certificate status monitoring extension in certificates it issues by default.

    • If Never then force No irrespective of the Certificate Creation Request (CCR) status_monitoring_extension field.

    • Default: Yes - overrides EPICS_PVACMS_STATUS_SUBSCRIPTION environment variable.

  • certs_db_filename

    • The certificate database file location.

    • Default: certs.db

  • cert_auth_keychain_file

    • The certificate authority keychain file location.

  • cert_auth_keychain_pwd

    • The certificate authority keychain file password.

  • pvacms_acf_filename

    • The PVACMS access control file location. This file protects the PVACMS administrator access.

  • cert_auth_name

    • The certificate authority name - used to create the certificate authority certificate if it does not already exist.

    • Default: "EPICS Root Certificate Authority

  • cert_auth_organization

    • The certificate authority organization - used to create the certificate authority certificate if it does not already exist

    • Default: certs.epics.org

  • cert_auth_organizational_unit

    • The certificate authority organizational unit - used to create the certificate authority certificate if it does not already exist

    • Default: EPICS Certificate Authority

PVACMS Authorization

A default ACF file is generated when PVACMS starts up for the first time. It contains a user group named CMS_ADMIN. It has one single user called admin. It defines an access rule that allows users in this group WRITE access to the Certificate Status PVs. Only users from this group that have been authenticated using an X.509 certificate issued by the certificate authority that the PVACMS manages, are authorized.

AUTHORITY(AUTH_EPICS_ROOT, "EPICS Root Certificate Authority")

UAG(CMS_ADMIN) {admin}

ASG(DEFAULT) {
    RULE(0,READ)
    RULE(1,WRITE) {
        UAG(CMS_ADMIN)
        METHOD("x509")
        AUTHORITY(AUTH_EPICS_ROOT)
    }
}

Equivalent YAML format:

# EPICS YAML
version: 1.0

authorities:
  - id: AUTH_EPICS_ROOT
    name: EPICS Root Certificate Authority

uags:
  - name: CMS_ADMIN
  users:
    - admin

asgs:
  - name: DEFAULT
    rules:
      - level: 0
        access: READ
      - level: 1
        access: WRITE
        uags:
          - CMS_ADMIN
        methods:
          - x509
        authorities:
          - AUTH_EPICS_ROOT

A default client certificate is generated that matches this security privilege. This certificate has the subject CN name admin and is generated by the certificate authority associated with this PVACMS. By default the certificate and key are stored in the file admmin.p12 in the current working directory.

2025-06-08T18:00:49.487647000 INFO pvxs.certs.cms X.509 certificate authority certificate
2025-06-08T18:00:49.487665000 INFO pvxs.certs.cms    CERT ID: fedcba98:13822586378443716801
2025-06-08T18:00:49.487693000 INFO pvxs.certs.cms SUBJECT  C: admin
2025-06-08T18:00:49.487746000 INFO pvxs.certs.cms     STATUS: VALID
2025-06-08T18:00:49.487758000 INFO pvxs.certs.cms VALID FROM: Sun Jun  8 18:00:49 2025
2025-06-08T18:00:49.487758000 INFO pvxs.certs.cms EXPIRES ON: Fri Jun  8 18:00:49 2029

admin.p12

Using this certificate an administrator can Approve or Deny certificates in the PENDING_APPROVAL state and Revoke VALID ones.

# Approve PENDING_APPROVAL certificate 3519231305961542464
pvxcert fedcba98:3519231305961542464 -A

# Deny PENDING_APPROVAL certificate 3519231305961542464
pvxcert fedcba98:3519231305961542464 -D

# Revoke VALID certificate 3519231305961542464
pvxcert fedcba98:3519231305961542464 -R
