security AuthN & AuthZ¶

Authentication and Authorization with Secure PVAccess

Authentication (AuthN) determines and verifies the identity of a client or server.
Authorization (AuthZ) defines and enforces access rights to PV resources.

Secure PVAccess enhances Long Running Certificates with fine-grained control based on:

Authentication Mode
Authentication Method
Certifying Authority
Protocol

Authentication Modes¶

Mutual: Both client and server are authenticated via certificates (spva: METHOD is x509)
Server-only: Only server is authenticated via certificate (spva: METHOD is ca or anonymous, but PROTOCOL is tls)
Un-authenticated: Credentials supplied in AUTHZ message (legacy: METHOD is ca)
Unknown: No credentials (legacy: METHOD is anonymous)

Legacy Authentication Mode¶

Methods:

anonymous - Unknown
ca - Un-authenticated

Optional AUTHZ message from client:

AUTHZ method: ca
AUTHZ user: george
AUTHZ host: McInPro.level-n.com

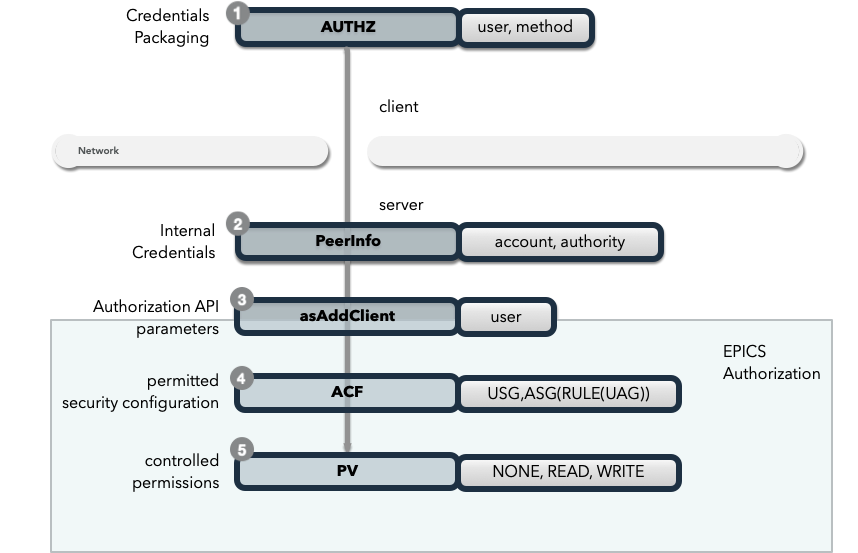

Server uses PeerInfo structure:

Legacy PeerInfo Structure

PeerInfo fields map to asAddClient parameters …
for authorization through the ACF definitions of UAG and ASG …
to control access to PVs

Secure PVAccess Authentication Mode¶

Methods:

server: x509 / client: x509 - Mutual
server: x509 - Server-Only

Client Identity optionally established via X.509 certificate during TLS handshake:

CN: greg
O: SLAC.stanford.edu
OU: SLAC National Accelerator Laboratory
C: US

EPICS agent optionally verifies certificate via trust chain
PeerCredentials structure provides peer information:

New PeerCredentials Structure

Extended asAddClientIdentity() function provides

Identity Structure for APIs

Secure authorization control enhanced with:

METHOD
AUTHORITY
PROTOCOL

through the ACF definitions of ASGs …

to control access to PVs

Authentication Method¶

anonymous Method¶

No credentials are supplied.

ca Method¶

Unauthenticated credentials are supplied in AUTHZ message.

x509 Method¶

A new Authentication Method is added with Secure PVAccess - x509. With x509 EPICS clients provide authenticated credentials in the form of an X.509 certificate.

Optionally EPICS clients can use a variety of Site Authenticators that can create an X.509 certificate from a variety of sources including

Kerberos
LDAP
Standard Authenticator (Just provide a username and optional organization)

The x509 authentication method integrates with Secure PVAccess via a PKCS#12 keychain file using the certificates and keys that it contains.

Certifying Authority¶

The Certifying Authority is the entity that vouches for the identity of the EPICS agent.

The identity of Secure PVAccess servers and clients are attested to by a Certifying Authority. This is known as the Certificate Authority or Trust Anchor.

A client and server must agree on the Certifying Authority that vouches for the identity of their peer. Certificates that are delivered by the PVACMS service are signed by a common Certificate Authority so clients and servers implicitly agree. If you provide your own certificates then you must share the trust anchor certificate between all clients and servers that need to communicate.

Protocol¶

The Protocol is the method used to transport the identity of an EPICS agent to its peer.

TLS - Transport Layer Security (Secure PVAccess)
TCP - Transmission Control Protocol (Legacy)

The TLS protocol is negotiated during the TLS handshake using the X.509 certificate provided by the server and optionally by the client.

Site Authenticators¶

Authenticators are ways of generating the certificate and placing it in the PKCS#12 keychain file, using credentials (tickets, tokens, or other identity-affirming methods) from existing authentication methods that may be in use at a particular site. The simplest is called “Standard Authenticator” (std) and it allows a user to create an arbitrary x509 certificate that has to be APPROVED by a network administrator before it is allowed on the network.

Tools that start with authn e.g. authnstd are the commandline interfaces to these Authenticators.

Reference Authenticators¶

TYPE `0` - Basic Credentials¶

Uses basic information:
- CN: Common name
  - Commandline flag: -n --name
  - Username
- O: Organisation
  - Commandline flag: -o --organization
  - Hostname
  - IP address
- OU: Organisational Unit
  - Commandline flag: --ou
- C: Country
  - Commandline flag: -c --country
  - Locale (not reliable)
  - Default = “US”
No verification performed
Certificates start in PENDING_APPROVAL state
Requires administrator approval

TYPE `1` - Independently Verifiable Tokens¶

Tokens verified independently or via endpoint (e.g., JWT)
Verification methods:
- Token signature verification
- Token payload validation
- Verification endpoint calls

TYPE `2` - Source Verifiable Tokens¶

Requires programmatic API integration (e.g., Kerberos)
Adds verifiable data to Certificate Creation Request (CCR) message
PVACMS uses method-specific libraries for verification

Common Environment Variables for all Authenticators¶

Configuration options for Standard Authenticator

Name	Keys and Values	Description
EPICS_PVA_AUTH_CERT_VALIDITY_MIN	<number of minutes> e.g. `1y` for 1 year	Amount of minutes before the certificate expires. e.g. 1d or 1y 2w 1d or 24h Where: 1y = 365 days 1M = 30 days 1w = 7 days
EPICS_PVA_AUTH_NAME	{name to use} e.g. `archiver` e.g. `IOC1` e.g. `greg`	Name to use in new certificates
EPICS_PVAS_AUTH_NAME	{name to use} e.g. `archiver` e.g. `IOC1` e.g. `greg`	Name to use in new certificates
EPICS_PVA_AUTH_ORGANIZATION	{organization to use} e.g. `site.epics.org` e.g. `SLAC.STANFORD.EDU` e.g. `KLYS:LI01:101` e.g. `centos07`	Organization to use in new certificates
EPICS_PVAS_AUTH_ORGANIZATION		Organization to use in new certificates
EPICS_PVA_AUTH_ORGANIZATIONAL_UNIT	{organization unit to use} e.g. `data center` e.g. `ops` e.g. `prod` e.g. `remote`	Organization Unit to use in new certificates
EPICS_PVAS_AUTH_ORGANIZATIONAL_UNIT		Organization Unit to use in new certificates
EPICS_PVA_AUTH_COUNTRY	{country to use} e.g. `US` e.g. `CA`	Country to use in new certificates. Must be a two digit country code
EPICS_PVAS_AUTH_COUNTRY	{country to use} e.g. `US` e.g. `CA`
EPICS_PVA_AUTH_ISSUER	{issuer of cert. mgmt. service} e.g. `f0a9e1b8`	The issuer ID to contact for any certificate operation. Must be am 8 character SKID If there are PVACMS’s from different certificate authorities on the network, this allows you to specify the one you want
EPICS_PVAS_AUTH_ISSUER	{issuer of cert. mgmt. service} e.g. `f0a9e1b8`
EPICS_PVA_CERT_PV_PREFIX	{certificate mgnt. prefix} e.g. `SLAC_CERTS`	Specify the prefix for the PVACMS PV to contact for new certificates default `CERT`
EPICS_PVAS_CERT_PV_PREFIX	{certificate mgnt. prefix} e.g. `SLAC_CERTS`

Included Reference Authenticators¶

Though it is recommended that you create your own site-specific Authenticators PVXS provides four reference implementations:

authnstd : Standard Authenticator - Uses explicitly specified and unverified credentials
authnkrb : Kerberos Authenticator - Kerberos credentials verified by the KDC
authnldap: LDAP Authenticator - Login to LDAP directory to establish identity
authnjwt : JWT Authenticator - Uses a JSON Web Token (JWT) to obtain a certificate verified by the JWT issuer.

authstd Configuration and Usage¶

This Authenticator is used for explicitly specified and unverified credentials. It can be used to create a certificate with a username and hostname.

CN field in the certificate will be the logged in username
- unless the -n --name commandline option is set
- unless the EPICS_PVA_AUTH_NAME, EPICS_PVAS_AUTH_NAME environment variable is set
O field in the certificate will be the hostname or ip address
- unless the -o --organization commandline option is set
- unless the EPICS_PVA_AUTH_ORGANIZATION, EPICS_PVAS_AUTH_ORGANIZATION environment variable is set
OU field in the certificate will not be set
- unless the --ou commandline option is set
- unless the EPICS_PVA_AUTH_ORGANIZATIONAL_UNIT, EPICS_PVAS_AUTH_ORGANIZATIONAL_UNIT environment variable is set
C field in the certificate will be set to the local country code
- unless the -c --country commandline option is set
- unless the EPICS_PVA_AUTH_COUNTRY, EPICS_PVAS_AUTH_COUNTRY environment variable is set

usage

Uses the standard EPICS_PVA_TLS_<name> environment variables to determine the keychain, and password file locations.

authnstd - Secure PVAccess Standard Authenticator

Generates client, server, or ioc certificates based on the Standard Authenticator.
Uses specified parameters to create certificates that require administrator APPROVAL before becoming VALID.

usage:
  authnstd [options]                         Create certificate in PENDING_APPROVAL state
  authnstd (-h | --help)                     Show this help message and exit
  authnstd (-V | --version)                  Print version and exit

options:
  (-u | --cert-usage) <usage>                Specify the certificate usage.  client|server|ioc.  Default `client`
  (-n | --name) <name>                       Specify common name of the certificate. Default <logged-in-username>
  (-o | --organization) <organization>       Specify organisation name for the certificate. Default <hostname>
        --ou <org-unit>                      Specify organisational unit for the certificate. Default <blank>
  (-c | --country) <country>                 Specify country for the certificate. Default locale setting if detectable otherwise `US`
  (-t | --time) <minutes>                    Duration of the certificate in minutes.  e.g. 30 or 1d or 1y3M2d4m
  (-D | --daemon)                            Start a daemon that re-requests a certificate on expiration`
        --cert-pv-prefix <cert_pv_prefix>     Specifies the pv prefix to use to contact PVACMS.  Default `CERT`
        --add-config-uri                      Add a config uri to the generated certificate
        --force                               Force overwrite if certificate exists
  (-a | --trust-anchor)                       Download Trust Anchor into keychain file.  Do not create a certificate
  (-s | --no-status)                          Request that status checking not be required for this certificate
  (-i | --issuer) <issuer_id>                 The issuer ID of the PVACMS service to contact.  If not specified (default) broadcast to any that are listening
  (-v | --verbose)                            Verbose mode
  (-d | --debug)                              Debug mode

Examples

# create a client certificate for greg@slac.stanford.edu
authnstd -u client -n greg -o slac.stanford.edu

# create a server certificate for IOC1
authnstd -u server -n IOC1 -o "KLI:LI01:10" --ou "FACET"

# create a client certificate for current user with no status monitoring
authnstd --no-status

# create a ioc certificate for gateway1
authnstd -u ioc -n gateway1 -o bridge.ornl.gov --ou "Networking"

# Download the Trust Anchor into your keychain file for server-only authenticated connections
authnstd --trust-anchor

Setup of standard authenticator in Docker Container for testing

In the source code under /examples/docker/spva_std you’ll find a Dockerfile and supporting resources for creating an environment that contains a working Secure PVAccess with the following characteristics:

users (unix)
- pvacms - service
- admin - principal with password “secret” (includes a configured PVACMS administrator certificate)
- softioc - service principal with password “secret”
- client - principal with password “secret”
services
- PVACMS

authkrb Configuration and Usage¶

This Authenticator is a TYPE 2 Authenticator. It can be used to create a certificate from a Kerberos ticket.

A user will need to have a Kerberos ticket to use this Authenticator typically using the kinit command.

kinit -l 24h greg@SLAC.STANFORD.EDU

CN field in the certificate will be kerberos username
O field in the certificate will be the kerberos realm
OU field in the certificate will not be set
C field in the certificate will be set to the local country code

usage

Uses the standard EPICS_PVA_TLS_<name> environment variables to determine the keychain, and password file locations.

authnkrb - Secure PVAccess Kerberos Authenticator

Generates client, server, or ioc certificates based on the kerberos Authenticator.
Uses current kerberos ticket to create certificates with the same validity as the ticket.

usage:
  authnkrb [options]                         Create certificate
  authnkrb (-h | --help)                     Show this help message and exit
  authnkrb (-V | --version)                  Print version and exit

options:
  (-u | --cert-usage) <usage>                Specify the certificate usage.  client|server|ioc.  Default ``client``
        --krb-validator <service-name>       Specify kerberos validator name.  Default ``pvacms``
        --krb-realm <krb-realm>              Specify the kerberos realm.  If not specified we'll take it from the ticket
  (-D | --daemon)                            Start a daemon that re-requests a certificate on expiration`
        --cert-pv-prefix <cert_pv_prefix>    Specifies the pv prefix to use to contact PVACMS.  Default `CERT`
        --add-config-uri                     Add a config uri to the generated certificate
        --force                              Force overwrite if certificate exists
  (-s | --no-status)                         Request that status checking not be required for this certificate
  (-i | --issuer) <issuer_id>                The issuer ID of the PVACMS service to contact.  If not specified (default) broadcast to any that are listening
  (-v | --verbose)                           Verbose mode
  (-d | --debug)                             Debug mode

Extra options that are available in PVACMS

usage:
  pvacms [kerberos options]                  Run PVACMS.  Interrupt to quit

kerberos options
        --krb-keytab <keytab file>           kerberos keytab file for non-interactive login`
        --krb-realm <realm>                  kerberos realm.  Default ``EPICS.ORG``
        --krb-validator <validator-service>  pvacms kerberos service name.  Default ``pvacms``

Environment Variables for PVACMS AuthnKRB Verifier

The environment variables and parameters in the following table configure the Kerberos Credentials Verifier for PVACMS at runtime.

Env. authnkrb	Env. pvacms	Params. authkrb	Params. pvacms	Keys and Values	Description
	KRB5_KTNAME		`--krb-keytab`	{string location of keytab file}	This is the keytab file shared with PVACMS by the KDC so that it can verify kerberos tickets
	KRB5_CLIENT_KTNAME		`--krb-keytab`	{string location of keytab file}
EPICS_AUTH_KRB_VALIDATOR_SERVICE		`--krb-validator`		{this is validator service name} e.g. `pvacms`	The name of the service user created in the KDC that the pvacms service will log in as. `/cluster@{realm}` will be added
EPICS_AUTH_KRB_REALM		`--krb-realm`		e.g. `EPICS.ORG`	Kerberos REALM to authenticate against

Setup of Kerberos in Docker Container for testing

In the source code under /examples/docker/spva_krb you’ll find a Dockerfile and supporting resources for creating an environment that contains a working kerberos KDC with the following characteristics:

users (both unix and kerberos principals)
- pvacms - service principal with private keytab file for authentication in ~/.config/pva/1.3/pvacms.keytab
- admin - principal with password “secret” (includes a configured PVACMS administrator certificate)
- softioc - service principal with password “secret”
- client - principal with password “secret”
services
- KDC
- kadmin Daemon
- PVACMS

authldap Configuration and Usage¶

This Authenticator is a TYPE 2 Authenticator. It can be used to create a certificate by logging in to the LDAP directory service.

A user will be prompted to log in to the LDAP directory service to verify their identity.

CN field in the certificate will be LDAP username
O field in the certificate will be the LDAP domain parts concatenated with “.”
OU field in the certificate will not be set
C field in the certificate will be set to the local country code

usage

Uses the standard EPICS_PVA_TLS_<name> environment variables to determine the keychain, and password file locations.

authnldap - Secure PVAccess LDAP Authenticator

Generates client, server, or ioc certificates based on the LDAP credentials.

usage:
  authnldap [options]                        Create certificate in PENDING_APPROVAL state
  authnldap (-h | --help)                    Show this help message and exit
  authnldap (-V | --version)                 Print version and exit

options:
  (-u | --cert-usage) <usage>                Specify the certificate usage.  client|server|ioc.  Default `client`
  (-n | --name) <name>                       Specify LDAP username for common name in the certificate.
                                             e.g. name ==> LDAP: uid=name, ou=People ==> Cert: CN=name
                                             Default <logged-in-username>
  (-o | --organization) <organization>       Specify LDAP org for organization in the certificate.
                                             e.g. epics.org ==> LDAP: dc=epics, dc=org ==> Cert: O=epics.org
                                             Default <hostname>
  (-p | --password) <name>                   Specify LDAP password. If not specified will prompt for password
        --ldap-host <hostname>               LDAP server host
        --ldap-port <port>                   LDAP serever port
  (-D | --daemon)                            Start a daemon that re-requests a certificate on expiration`
        --cert-pv-prefix <cert_pv_prefix>    Specifies the pv prefix to use to contact PVACMS.  Default `CERT`
        --add-config-uri                     Add a config uri to the generated certificate
        --force                              Force overwrite if certificate exists
  (-s | --no-status)                         Request that status checking not be required for this certificate
  (-i | --issuer) <issuer_id>                The issuer ID of the PVACMS service to contact.  If not specified (default) broadcast to any that are listening
  (-v | --verbose)                           Verbose mode
  (-d | --debug)                             Debug mode

Extra options that are available in PVACMS

usage:
  pvacms [ldap options]                      Run PVACMS.  Interrupt to quit

ldap options
        --ldap-host <host>                   LDAP Host.  Default localhost
        --ldap-port <port>                   LDAP port.  Default 389

Environment Variables for authnldap and PVACMS AuthnLDAP Verifier

The environment variables and parameters in the following table configure the authnldap client and LDAP Credentials Verifier for PVACMS at runtime.

Env. authnldap	Params. authldap	Keys and Values	Description
EPICS_AUTH_LDAP _ACCOUNT_PWD_FILE		{location of password file} e.g. `~/.config/pva/1.3/ldap.pass`	file containing password for the given LDAP user account
	`-p` `--password`	{LDAP account password} e.g. `secret`	password for the given LDAP user account
EPICS_AUTH_LDAP_HOST	`--ldap-host`	{hostname of LDAP server} e.g. `ldap.stanford.edu`	Trusted hostname of the LDAP server
EPICS_AUTH_LDAP_PORT	`--ldap-port`	<port_number> e.g. `389`	LDAP server port number. Default is 389

Setup of LDAP in Docker Container for testing

In the source code under /examples/docker/spva_ldap you’ll find a Dockerfile and supporting resources for creating an environment that contains a working LDAP with the following characteristics:

users (both unix and LDAP users)
- pvacms - service with verifier for LDAP service
- admin - principal with password “secret” (includes a configured PVACMS administrator certificate)
- softioc - service principal with password “secret”
- client - principal with password “secret”
services
- LDAP service + example schemas
- PVACMS

authjwt Configuration and Usage (OUT OF SCOPE!)¶

OUT OF SCOPE! This feature is not Included in the scope of this project

The Secure PVAccess framework supports JWT-based authentication. This Authenticator allows clients and servers to use JSON Web Tokens (JWTs) as credentials to obtain X.509 certificates on the fly. The JWT Authenticator integrates with the EPICS Certificate Management Service (PVACMS) to exchange a token for a short-lived certificate, enabling seamless use of EPICS access control with externally authenticated identities.

This Authenticator is a Type 1 Authenticator – Independently Verifiable Tokens, meaning the token’s authenticity can be checked by PVACMS without additional client interaction. PVACMS verifies the JWT’s signature and claims (e.g. issuer, audience, expiration) against a configured trusted issuer. If the token is valid, PVACMS issues a signed certificate carrying the identity information from the token.

Notably, the JWT Authenticator introduces the concept of an in-memory certificate – instead of requiring a keychain file on disk, the certificate and private key can be handled entirely in memory via the API.

Note: These certificates are appropriate for some client scenarios. Use for IOCs and Gateways is strongly discouraged

usage

Uses the standard EPICS_PVA_TLS_<name> environment variables to determine the keychain, and password file locations.

authnjwt – Secure PVAccess JWT Authenticator

Generates client, server, or IOC certificates based on a JSON Web Token.  Use for server or IOC is discouraged.
Uses the provided JWT to create certificates that are valid for the token’s lifetime.

usage:
    authnjwt [options]                   Create certificate (token-verified; results in VALID certificate)
    authnjwt (-h | --help)               Show this help message and exit
    authnjwt (-V | --version)            Print version and exit

options:
    (-u | --cert-usage) <usage>         Specify certificate usage: `client` (default), `server`, or `ioc`.
        --token-file <file>             Read the JWT from a file.
        --ou <org-unit>                 Specify organisational unit for the certificate. Default <blank>
    (-c | --country) <country>          Specify country for the certificate. Default locale setting if detectable otherwise `US`
    (-t | --time) <minutes>             Duration of the certificate in minutes (total renew until time).  e.g. 30 or 1d or 1y3M2d4m
    (-D | --daemon)                     Run as a daemon to automatically renew the certificate on expiration.
        --cert-pv-prefix <prefix>       PV prefix for contacting PVACMS (default: `CERT`).
        --add-config-uri                Add a configuration URI to the generated certificate.
        --force                         Overwrite any existing certificate file for this usage.
    (-s | --no-status)                  Do not request status monitoring for this certificate.
    (-i | --issuer) <issuer_id>         Specify the PVACMS issuer ID (8-char SKID) to contact (if multiple CAs are available).
    (-v | --verbose)                    Verbose output.
    (-d | --debug)                      Debug output.

Extra options that are available in PVACMS

usage:
  pvacms [jwt options]                      Run PVACMS.  Interrupt to quit

jwt options
        --jwt-request-format <format>       Verification Payload format
        --jwt-request-method <methodt>      GET or POST - method to call verification URI
        --jwt-response-format <format>      Verification Response Format
        --jwt-trusted-uri <uri>             The Verification URI (mandatory)
        --jwt-use-response-code             Use HTTP response code to determine validity

Environment Variables for AuthnJWT Credentials Verifier

The environment variables and parameters in the following table configure the JWT Credentials Verifier for PVACMS at runtime.

Env. pvacms	Params. pvacms	Keys and Values	Description
EPICS_AUTH_JWT_REQUEST_FORMAT	`--jwt-request-format`	string format for verification request payload e.g. `{ "token": "#token#" }` e.g. `#token#`	A string that is used verbatim as the payload for the verification request while substituting the string `#token#` for the token value, and `#kid#` for the key id. This is used when the verification server requires a formatted payload for the verification request. If the string is simply `#token#` (default) then the verification endpoint is called with the raw token as the payload.
EPICS_AUTH_JWT_REQUEST_METHOD	`--jwt-request-method`	`POST` (default) GET` e.g. of call made for GET: GET /api/validate-token HTTP/1.1 Authorization: Bearer eyJhbGcXVCJ9…	This determines whether the endpoint will be called with `HTTP GET` or `POST` . If called with `POST`, then the payload is exactly what is defined by the `EPICS_AUTH_JWT_RESPONSE_FORMAT` variable. If called with GET, then the token is passed in the Authorization header of the `HTTP GET` request
EPICS_AUTH_JWT_RESPONSE_FORMAT	`--jwt-response-format`	string format for verification response value e.g. `{ "payload": { * },` `` “valid”: #response# }`` e.g. `#response#`	A pattern string that we can use to decode the response from a verification endpoint if the response is formatted text. All white space is removed in the given string and in the response. Then all the text prior to `#response#` is matched and removed from the response and all the text after the response is likewise removed, what remains is the response value. An asterisk in the string matches any sequence of characters in the response. It is converted to lowercase and interpreted as valid if it equals `valid`, `ok`, `true`, `t`, `yes`, `y`, or `1`. If the string is `#response#` (default) then the response is raw and is converted to lowercase and compared without removing any formatting
EPICS_AUTH_JWT_TRUSTED_URI	`--jwt-trusted-uri`	uri of JWT validation endpoint e.g. `http://issuer/api/validate-token`	Trusted URI of the validation endpoint including the `http://`, `https://`, and port number. There is no default, it must be the text prior to `#response#` is matched and removed from the specified. This is used to compare to the `iss` field in the decoded token payload if it is provided. If it is not the same, then the validation fails. If the `iss` field is missing, then the value of this variable is taken as the validation URI.
EPICS_AUTH_JWT_USE_RESPONSE_CODE	`--jwt-use-response-code`	case insensitive: `YES`, `TRUE`, or `1`	If set this tells PVACMS that when it receives a `200` HTTP-response code from the HTTP request then the token is valid, and invalid for any other response code.

Env. authnjwt	Params. authjwt	Keys and Values	Description
EPICS_AUTH_JWT_FILE	`--token-file <file>`	location of JWT file e.g. `~/.config/pva/1.3/jwt.txt`	file containing JWT token text

Setup of JWT in Docker Container for testing

In the source code under /examples/docker/spva_jwt you’ll find a Dockerfile and supporting resources for creating an environment that contains a working JWT issuer and validator with the following characteristics:

users (both unix and kerberos principals)
- pvacms - service with password “secret”
- admin - principal with password “secret” (includes a configured PVACMS administrator certificate)
- softioc - service principal with password “secret”
- client - principal with password “secret”
services
- JWT issuer GET http://localhost/api/token?name=client to get token for client
- JWT validator POST http://localhost/api/validate-token payload is raw token
- PVACMS

In Session JWT (Planned Support 2027)¶

New API:

pvxs::client::Config::fromToken(const std::string &token)

When using the JWT Authenticator through the PVXS API, the certificate can be kept in memory. This call transparently exchanges the token for an in-memory certificate and stores the certificate and private key within the client’s session (without writing a .p12 file to disk).

The private key is generated and held in memory, and PVACMS returns a signed certificate for the corresponding public key. The certificate will automatically be revoked (via PVACMS) when the client’s session ends, and it will share the same lifetime as the JWT that generated it.

Clients can renew the in-memory certificate indefinitely by providing fresh JWTs (with the same identity claims) before expiration. Behind the scenes a certificate with a long lifetime is always requested for the first request for any identity, then subsequent renewal tokens will just extend the status validity of the existing certificate without replacing the TLS connection.

This mechanism enables EPICS Access Control RULES (ACF files) to recognize principals from: external identity systems via the certificates obtained from JWTs.

Long Running Certificates¶

In Experimental Physics and Industrial Control Systems, maintaining uninterrupted connections is critical. Even a microsecond break can trigger fail-safety mechanisms that might disrupt experiments.

With TLS 1.3 (implemented in OpenSSL), renegotiation has been completely removed from the protocol due to serious security vulnerabilities. Previous versions of TLS allowed session renegotiation, which permitted changing security parameters (including certificates) without closing the connection. However, this feature was exploited in several attacks, including the “Triple Handshake Attack” and “Secure Renegotiation” vulnerabilities.

This means that once a TLS connection has been established with an IOC over Secure PVAccess, we cannot change the certificate without breaking and re-establishing the connection. Our solution to this problem involves:

Creating very long running certificates (decades)
Allowing them to be REVOKED by administrators when necessary
Implementing a kind of “soft-expiration” tied to authenticator configuration
Providing the ability to renew certificates without breaking existing connections

Specifying long running certificates¶

Common to all Authenticators - commandline parameters¶

Use the -t,--time flag to specify a duration for the certificate using these components:

y - Years (e.g., 2y for two years)
M - Months (e.g., 6M for six months)
w - Weeks (e.g., 1w for one week)
d - Days (e.g., 15d for 15 days)
h - Hours (e.g., 12h for 12 hours)
m - Minutes (e.g., 30m for 30 minutes, or simply 30)
s - Seconds (e.g., 45s for 45 seconds)

Examples:

1y and 6M - one year and six months
2y3M15d - two years, three months, and 15 days

The system uses natural time understanding, accounting for daylight savings, leap years, etc. For example, if you specify 1 year, the certificate will expire on the same calendar day next year, regardless of leap years.

Common to all Authenticators - environment variables¶

EPICS_AUTH_CERT_VALIDITY_MINS - sets a global duration for any Authenticator using the same format as the commandline parameter.

PVACMS Defaults - Parameters¶

PVACMS defaults to 6 months for certificate duration unless overridden by:

--cert_validity <duration> - default duration for all certificates
--cert_validity-client <duration> - default for client certificates
--cert_validity-server <duration> - default for server certificates
--cert_validity-ioc <duration> - default for IOC certificates
--disallow-custom-durations - prevents clients from specifying durations for any certificates
--disallow-custom-durations-client - restricts custom durations for client certificates
--disallow-custom-durations-server - restricts custom durations for server certificates
--disallow-custom-durations-ioc - restricts custom durations for IOC certificates

PVACMS Defaults - Environment Variables¶

Values can also be set using environment variables:

EPICS_PVACMS_CERT_VALIDITY - default duration for all certificates
EPICS_PVACMS_CERT_VALIDITY_CLIENT - default for client certificates
EPICS_PVACMS_CERT_VALIDITY_SERVER - default for server certificates
EPICS_PVACMS_CERT_VALIDITY_IOC - default for IOC certificates
EPICS_PVACMS_DISALLOW_CUSTOM_DURATION - YES/NO to prevent custom durations for any certificates
EPICS_PVACMS_DISALLOW_CLIENT_CUSTOM_DURATION - YES/NO for client certificates
EPICS_PVACMS_DISALLOW_SERVER_CUSTOM_DURATION - YES/NO for server certificates
EPICS_PVACMS_DISALLOW_IOC_CUSTOM_DURATION - YES/NO for IOC certificates

The Authenticator Controls the Certificate Renewal Date¶

The actual time before a certificate needs renewal is determined by the Authenticator (and by extension, the network administrators controlling the authentication methods).

This is known as the Authenticated Expiration Date:

Standard Authenticator: Default is 6 months with no upper limit (subject to admin approval)
Kerberos: Limited by service ticket lifetime (typically 1 day)
LDAP: Limited by server default (typically 1 day)

Mapping requested duration to certificate expiration¶

Two critical dates govern certificate lifecycle:

Requested Duration → Certificate Expiration Date: When the certificate becomes invalid
Authenticated Expiration → Certificate Renew-By Date: When the certificate should be renewed

The PVACMS will change a certificate’s status from VALID to PENDING_RENEWAL when it reaches the renew-by date. Certificates in this state can’t establish new connections, but existing connections can continue until the certificate is renewed.

How do we enforce Renew By dates¶

All certificates with renew-by dates must have certificate status monitoring enabled. If status monitoring is disabled for the PVACMS server, generating certificates with renew-by dates will be forbidden.

Secure PVAccess monitors certificate status and reacts to state changes:

VALID: Certificate is operational
PENDING_RENEWAL: Certificate needs renewal but isn’t revoked
REVOKED / EXPIRED: Certificate is permanently invalidated

When a certificate transitions to PENDING_RENEWAL:

IOCs/servers will only accept TCP connections (no TLS)
Clients won’t search for TLS protocol services
Monitoring consoles will pause until certificate renewal

Renewing certificates¶

To renew a certificate, simply perform the same action used to get the original certificate. PVACMS will:

Recognize that the certificate is for the same subject
Automatically renew it
Keep both the new certificate and the original one active

This means:

Existing connections using the long-running certificate continue without interruption
New connections will use the newer certificate

You can renew certificates multiple times, and the system will always keep the last certificate obtained as well as the original, renewed one.

Best practice: Renew before the certificate enters PENDING_RENEWAL state to maintain uninterrupted service. If renewal occurs after the renew-by date, the certificate will automatically transition back to VALID upon successful renewal.

Authorization¶

Secure PVAccess’ authentication mechanisms integrate with EPICS Security’s authorization system to provide fine-grained access control options. These improvements enable robust security while maintaining backward compatibility with legacy systems.

Certificate-based Identity:
- Authentication using X.509 certificates provides stronger identity verification than legacy username/host identification.
Expanded Access Control Rules:
- New rule elements for METHOD, AUTHORITY, and PROTOCOL enable precise permission definitions.
Enhanced Permission Types:
- Addition of RPC permission supports fine-grained control over remote procedure calls.
Protocol-aware Security:
- Permissions can be granted based on encrypted (TLS) or unencrypted (TCP) connections.
API Extensions:
- New APIs for client identity management and auditing security events with enhanced identity data.

New Security Features¶

Identity Verification:
- Certificates provide cryptographically secure identity verification
Fine-grained Control:
- Combine authentication METHOD, certifying AUTHORITY, and transport PROTOCOL for precise access control
Connection Security:
- Control access based on encrypted (TLS) vs. unencrypted (TCP) connections
Defense in Depth:
- Layer multiple security rules for comprehensive protection
Backward Compatibility:
- Support legacy clients while providing enhanced security for modern clients
Centralized Management:
- Revocation of permissions now managed through PVACMS with immediate effect
Scalable Architecture:
- Support for multiple authentication methods via Authenticators

By leveraging these enhanced security features, Secure PVAccess provides a robust security model that can meet the requirements of modern control systems while maintaining compatibility with existing EPICS deployments.

EPICS Security Access Control File (ACF) Extensions¶

Secure PVAccess extends the Access Control File (ACF) syntax with new rule predicates:

METHOD¶

Defines access permissions based on authentication method:

x509: Certificate-based authentication
ca: Legacy PVAccess AUTHZ with user-specified account
anonymous: Access without specified name

Can be provided as quoted or unquoted strings.

Example:

RULE(1,READ) {
    METHOD("x509")
}

The above rule will match any client that presents an x509 certificate to assert its identity.

AUTHORITY¶

1. A new top level item in ACF files AUTHORITY declares the hierarchy of Certificate Authorities that can be referenced, going all the way back to the Root Certificate Authority.

Specifies Certifying Authority:

Uses name from CN field of certificate authority certificate’s subject

The whole chain must be specified back to the root certificate

Not all nodes need to be named especially if they are intermediate certificates

Example:

AUTHORITY(AUTH_EPICS_ROOT, "EPICS Root Certificate Authority") {
    AUTHORITY("SNS Intermediate CA") {
        AUTHORITY(AUTH_SNS_CTRL, "SNS Control Systems CA")
        AUTHORITY(AUTH_BEAMLINE, "SNS Beamline Operations CA")
   }
}

AUTHORITY(AUTH_EPICS_IT_ROOT, "EPICS IT Root Certificate Authority") {
    AUTHORITY(AUTH_EPICS_USERS, "EPICS Users Certificate Authority")
}

A new AUTHORITY predicate in ASG RULES references the top level AUTHORITY to constrain rules

References the Top Level Authority definition:

Only applicable for X.509 certificate authentication

Multiple authorities can be specified and any one of them will be accepted

Example:

RULE(1,READ) {
    AUTHORITY(AUTH_EPICS_USERS, AUTH_EPICS_ROOT)
}

The above rule will match any client that presents an x509 certificate that is signed by the EPICS Root Certificate Authority or the EPICS Users Certificate Authority.

RULE(1,WRITE) {
    AUTHORITY(AUTH_SNS_CTRL)
}

The above rule will match any client that presents an x509 certificate that is signed by the SNS Control Systems CA.

PROTOCOL¶

Specifies the connection protocol requirement:

TCP: Default unencrypted connection
TLS: Encrypted connection

Can be provided as quoted or unquoted strings. Upper or lower case is accepted.

Example:

RULE(1,READ) {
    PROTOCOL("TLS")
}

The above rule will match any client that connects using an encrypted (TLS) connection. This is always the case for when clients provide an x509 certificate to assert their identity, however it can also be the case for server-only authenticated connections. In the later case the connection METHOD could be ca or anonymous but the PROTOCOL will be TLS.

Note that you can also specify TCP to define a rule that matches only unencrypted (TCP) connections.

Example:

RULE(1,NONE) {
    PROTOCOL("TCP")
}

The above rule will explicitly prohibit any client that connects using an unencrypted (TCP) connection.

RPC Permission¶

New rule permission for RPC message access control:

Supplements existing NONE, READ (GET), and WRITE (PUT)
Controls access to RPC PVAccess messages

Note: The syntax has been implemented for ACF files but control of RPC access is not yet available.

Example:

RULE(1,RPC) {
    UAG(admins)
}

Full ACF Examples¶

These examples demonstrate combining security features for granular access control:

Authorization based on PROTOCOL, METHOD, and AUTHORITY

UAG(operators) {greg, karen, ralph}
UAG(engineers) {kay, george, michael}
UAG(admins) {aqeel, earnesto, pierrick}

AUTHORITY(AUTH_EPICS_ROOT, "EPICS Root Certificate Authority") {
    AUTHORITY("Intermediate CA") {
        AUTHORITY(AUTH_LBNL_CTRL, "LBNL Certificate Authority")
    }
    AUTHORITY(AUTH_SLAC_ROOT, "SLAC Certificate Authority") {
        AUTHORITY(AUTH_EPICS_USERS, "EPICS Users Certificate Authority")
    }
}


ASG(DEFAULT) {
# Default - No access
   RULE(0,NONE)

# Read-only access for operators, requiring TLS
   RULE(1,READ) {
       UAG(operators,engineers,admins)
       PROTOCOL(tls)
   }

# Write access for engineers from SLAC or LBNL using x509 auth
   RULE(2,WRITE) {
       UAG(engineers,admins)
       METHOD(x509)
       AUTHORITY(AUTH_LBNL_CTRL, AUTH_SLAC_ROOT)
   }

# RPC access for admins using specific Cert Auth and TLS
   RULE(3,RPC) {
       UAG(admins)
       METHOD("x509")
       AUTHORITY(AUTH_EPICS_ROOT)
   }
}

Legacy compatible with Enhanced Security

AUTHORITY(AUTH_EPICS_ROOT, "EPICS Root Certificate Authority")

# Support both legacy and SPVA clients
ASG(backward_compatible) {
   RULE(0,NONE)
   # Legacy access - read only
   RULE(1,READ) {
       METHOD("ca", "anonymous")
       PROTOCOL(tcp)
   }
   # Enhanced access - write with secure authentication
   RULE(2,WRITE) {
       UAG(operators)
       METHOD("x509")
       AUTHORITY(AUTH_EPICS_ROOT)
       PROTOCOL("tls")
   }
}

Authenticator Development¶

To implement a new Authenticator requires the following steps:

1. Source Code¶

Create under /certs/authn/<name>:

authn<name>main.cpp
- Main runner (copy from template)
authn<name>.cpp
- Main implementation subclassing Authn,
- includes registration and PVACMS extensions & verifier
authn<name>.h
- Header file
config<name>.cpp
- Configuration interface subclassing AuthnConfig
config<name>.h
- Header file
Makefile
- Build configuration
README.md
- Documentation

2. Build flag to enable code to be compiled in¶

choose a make flag name of the form PVXS_ENABLE_<NAME>_AUTH where NAME is a three or four letter acronynm. e.g. KRB
update /certs/authn/Makefile to add a line at the end similar to the following:

#--------------------------------------------
#  ADD AUTHENTICATOR PLUGINS AFTER THIS LINE

ifeq ($(PVXS_ENABLE_KRB_AUTH),YES)
include $(AUTHN)/krb/Makefile
endif

Sites compiling PVXS will set these macros in their private CONFIG_SITE.local stored one level above the root of the source tree. e.g.

PVXS_ENABLE_KRB_AUTH = YES
PVXS_ENABLE_LDAP_AUTH = YES

To build PVACMS add the following, by default it will not be built

PVXS_ENABLE_PVACMS = YES

3. Extra options for PVACMS¶

If you need to add some options to the commandline for PVACMS for your Authenticator just override these methods in the base Auth class. e.g. for LDAP below:

class AuthNLdap final : public Auth {
  public:
    // Copy config settings into the Authenticator
    void configure(const client::Config &config) override {
        auto &config_ldap = dynamic_cast<const ConfigLdap &>(config);
        ldap_server = config_ldap.ldap_host;
        ldap_port = config_ldap.ldap_port;
    };

    // Define placeholder text e.g. `command [placeholder] [options] positional parameters`
    std::string getOptionsPlaceholderText() override { return " [ldap options]"; }

    // Define the help text for the options
    std::string getOptionsHelpText() override {
        return "\n"
               "ldap options\n"
               "        --ldap-host <host>                   LDAP Host.  Default localhost\n"
               "        --ldap-port <port>                   LDAP port.  Default 389\n";
    }

    // Add options to given commandline parser
    void addOptions(CLI::App &app, std::map<const std::string, std::unique_ptr<client::Config>> &authn_config_map) override {
        auto &config = authn_config_map.at(PVXS_LDAP_AUTH_TYPE);
        auto config_ldap = dynamic_cast<const ConfigLdap &>(*config);
        app.add_option("--ldap-host", config_ldap.ldap_host, "Specify LDAP hostname or IP address");
        app.add_option("--ldap-port", config_ldap.ldap_port, "Specify LDAP port number");
    }
};

4. Extra environment variables for PVACMS¶

If you need to add some environment variables for PVACMS for your Authenticator just override these methods in the base Auth and ConfigAuthN classes. e.g. for Kerberos shown below.

class AuthNKrb final : public Auth {
  public:
    // Copy config settings into the Authenticator
    void configure(const client::Config &config) override {
        auto &config_krb = dynamic_cast<const ConfigKrb &>(config);
        krb_validator_service_name = SB() << config_krb.krb_validator_service << PVXS_KRB_DEFAULT_VALIDATOR_CLUSTER_PART << config_krb.krb_realm;
        krb_realm = config_krb.krb_realm;
        krb_keytab_file = config_krb.krb_keytab;
    }

    // Update the definitions map for display of effective config
    void updateDefs(client::Config::defs_t &defs) const override {
        defs["KRB5_KTNAME"] = krb_keytab_file;
        defs["KRB5_CLIENT_KTNAME"] = krb_keytab_file;
        defs["EPICS_AUTH_KRB_VALIDATOR_SERVICE"] = krb_validator_service_name;
        defs["EPICS_AUTH_KRB_REALM"] = krb_realm;
    }

    // Construct a new AuthNKrb, configured from the environment
    void fromEnv(std::unique_ptr<client::Config> &config) override { config.reset(new ConfigKrb(ConfigKrb::fromEnv())); }
};

class ConfigKrb final : public ConfigAuthN {
  public:
    ConfigKrb& applyEnv() {
        Config::applyEnv(true, CLIENT);
        return *this;
    }

    // Make a new config containing the base classes environment settings plus any
    // environment variables for this Authenticator
    static ConfigKrb fromEnv() {
        auto config = ConfigKrb{}.applyEnv();
        const auto defs = std::map<std::string, std::string>();
        config.fromAuthEnv(defs);
        config.fromKrbEnv(defs);
        return config;
    }

    void ConfigKrb::fromKrbEnv(const std::map<std::string, std::string>& defs) {
        PickOne pickone{defs, true};

        // KRB5_KTNAME
        // This is the environment variable defined by krb5
        if (pickone({"KRB5_KTNAME", "KRB5_CLIENT_KTNAME"})) {
            krb_keytab = pickone.val;
        }

        // EPICS_AUTH_KRB_REALM
        if (pickone({"EPICS_AUTH_KRB_VALIDATOR_SERVICE"})) {
            krb_validator_service = pickone.val;
        }

        // EPICS_AUTH_KRB_REALM
        if (pickone({"EPICS_AUTH_KRB_REALM"})) {
            krb_realm = pickone.val;
        }
    }
};

New APIs¶

Secure PVAccess introduces new APIs for programmatically managing security with authenticated identities:

Legacy `PeerInfo` Structure¶

struct PeerInfo {
    std::string peer;      // network address
    std::string transport; // protocol (e.g., "pva")
    std::string authority; // auth mechanism
    std::string realm;     // authority scope
    std::string account;   // user name
}

New `PeerCredentials` Structure¶

struct PeerCredentials {
    std::string peer;      // network address
    std::string iface;     // network interface
    std::string method;    // "anonymous", "ca", or "x509"
    std::string authority; // Certificate Authority common name for x509 if mode is `Mutual` or blank
    std::string account;   // User account if mode is `Mutual` or blank
    bool isTLS;            // Secure transport status.  True is mode is `Mutual` or `Server-Only`
};

Enhanced Client Management¶

long epicsStdCall asAddClientIdentity(
     ASCLIENTPVT *pasClientPvt, ASMEMBERPVT asMemberPvt, int asl,
     ASIDENTITY identity);

long epicsStdCall asChangeClientIdentity(
     ASCLIENTPVT asClientPvt, int asl,
     ASIDENTITY identity);

Enhanced Auditing¶

void * epicsStdCall asTrapWriteBeforeWithIdentityData(
     ASIDENTITY identity,
     dbChannel *addr, int dbrType, int no_elements, void *data);

Identity Structure for APIs¶

This unified structure replaces separate user/host parameters:

typedef struct asIdentity {
    const char *user;         // User identifier (CN from certificate)
    char *host;               // Host identifier (O from certificate)
    const char *method;       // Authentication method ("ca", "x509", "anonymous")
    const char *authority;    // Certificate authority
    enum AsProtocol protocol; // Connection protocol (TCP/TLS)
} ASIDENTITY;

Protocol Enumeration¶

enum AsProtocol {
    AS_PROTOCOL_TCP = 0,     // Unencrypted connection
    AS_PROTOCOL_TLS = 1      // Encrypted connection
};

security AuthN & AuthZ¶

Authentication Modes¶

Legacy Authentication Mode¶

Secure PVAccess Authentication Mode¶

Authentication Method¶

anonymous Method¶

ca Method¶

x509 Method¶

Certifying Authority¶

Protocol¶

Site Authenticators¶

Reference Authenticators¶

TYPE 0 - Basic Credentials¶

TYPE 1 - Independently Verifiable Tokens¶

TYPE 2 - Source Verifiable Tokens¶

Common Environment Variables for all Authenticators¶

Included Reference Authenticators¶

authstd Configuration and Usage¶

authkrb Configuration and Usage¶

authldap Configuration and Usage¶

authjwt Configuration and Usage (OUT OF SCOPE!)¶

In Session JWT (Planned Support 2027)¶

Long Running Certificates¶

Specifying long running certificates¶

Common to all Authenticators - commandline parameters¶

Common to all Authenticators - environment variables¶

PVACMS Defaults - Parameters¶

PVACMS Defaults - Environment Variables¶

The Authenticator Controls the Certificate Renewal Date¶

Mapping requested duration to certificate expiration¶

How do we enforce Renew By dates¶

Renewing certificates¶

Authorization¶

New Security Features¶

EPICS Security Access Control File (ACF) Extensions¶

METHOD¶

AUTHORITY¶

PROTOCOL¶

RPC Permission¶

Full ACF Examples¶

Authenticator Development¶

1. Source Code¶

2. Build flag to enable code to be compiled in¶

3. Extra options for PVACMS¶

4. Extra environment variables for PVACMS¶

New APIs¶

Legacy PeerInfo Structure¶

New PeerCredentials Structure¶

Enhanced Client Management¶

Enhanced Auditing¶

Identity Structure for APIs¶

Protocol Enumeration¶

TYPE `0` - Basic Credentials¶

TYPE `1` - Independently Verifiable Tokens¶

TYPE `2` - Source Verifiable Tokens¶

Legacy `PeerInfo` Structure¶

New `PeerCredentials` Structure¶
